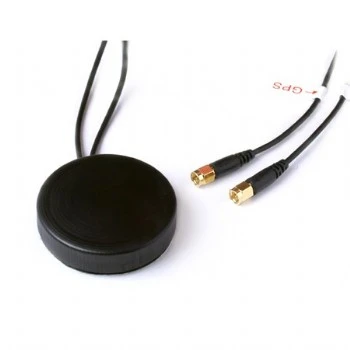

6-in-1 Multi-band Antenna
Multi-band antenna for any telemetry applications
MODEL:AU-4S
The AU-4S is the multi-band antenna, which covers GPS/850/900/1800/1900/2100 MHz frequencies. It is specially designed for any telemetry applications, which utilize those bands. The high sensitivity of AU-4S will enhance the performance of your telemetry devices.
The AU-4S is the multi-band antenna, which covers GPS/850/900/1800/1900/2100 MHz frequencies. It is specially designed for any telemetry applications, which utilize those bands. The high sensitivity of AU-4S will enhance the performance of your telemetry devices.
Features
-
Low profile structure without a whip
-
Both permanent and magnetic mountings are available
-
IPX7 fully waterproof
Applications:
-
Vehicle tracking
-
Asset tracking
-
GPS Navigation
-
Telemetry Application
Specification
Frequency : 1.57542GHz (L1 BAND) 824 MHz ~ 894 MHz (GSM 850MHz)
890~960 MHz (GSM 900MHz)
1710~1890 MHz (DCS 1800MHz)
1850 ~ 1990 MHz (PCS 1900MHz)
2.1G
890~960 MHz (GSM 900MHz)
1710~1890 MHz (DCS 1800MHz)
1850 ~ 1990 MHz (PCS 1900MHz)
2.1G
Gain : (Without Cable) 27dB 1.7dBi
VSWR : < 1.8. < 2.0 (with 3m cable)
Impedance : 50 Ohm 50 Ohm
Dimension : 63mm(Dia.) x 15.6mm(H)
Operating Temperature : -40ﾟC to +80ﾟC
Power Supply : 3.0 ~ 5.5V DC -
Power Consumption : 12mA -
Cable : 5 Meter-RG174/FME
5 Meter-RG174/SMA
5 Meter-RG174/SMA
Power Handling Capacity : - 10W
Polarization : R.H.C.P Linear
Noise Figure : 1.2 Max -
