MODEL: LTE-EEN001

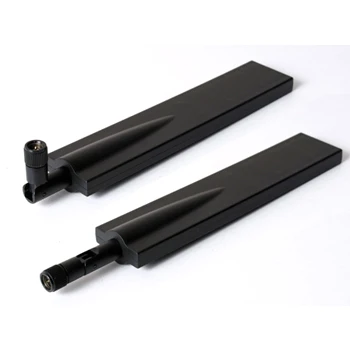

The LTE-EEN001 is the LTE (Long Term Evolution) antenna, which is the latest standard in mobile networking technology, referred to as 3G/4G. It covers the LTE frequency ranges of 704-960/1710-2620 MHz providing omni-directional radiation with a gain of 5 dBi. The LTE-EEN001 is specially designed for any telemetry applications, which utilize this band. The high sensitivity of LTE-EEN001 will enhance the performance of your telemetry devices..
Features
  • 4G Swivel Blade Antenna
  • Performance across the LTE frequency bands
  • 704-960/1710-2620 MHz<
  • Up to 5 dBi Gain
  • SMA(Male) connector
Applications:
  • 4G Router, Hub or Access point
  • Small Base Station
  • Femto Cell
  • SOHO
Specification
  • Frequency : 704-960/1710-2620 MHz
  • Gain : Up to 5 dBi
  • VSWR : 2.0:1 Max
  • Impedance : 50 ohm
  • Standard Connector : SMA(Male)
  • Dimension : 144(L) /182(L) x 30(W) x 16.3 (H) mm
  • Operating Temperature : -40°C to +80°C
  • Polarization : Linear, vertical
